Datalogger with a PC Display Interface

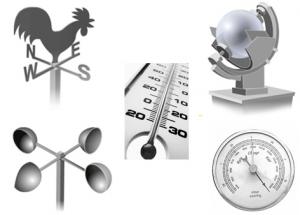

Measures Wind Speed, Wind Direction, Temperature, Pressure, Humidity, Solar Irradiance
Real-time and historical observations
Displays diagnostics of data-logger and sensor errors
Provision to export data in standard CSV format or XML format
7 days Data logging capability on the unit
Interface: 20x2 LCD display
4 Analog and 2 Digital (RS232) input channels
Wind Direction,0–360Deg(0–10K/4–20mA)
Temperature,-40 to +60°C(0-1000mv)
Humidity 0 to 100%(0-1000mv)
Battery voltage (10-14 Volts DC)
Scan Rate: one sample of all channels per second
Communication interface: 2Nos of 10/100 Base-T Ethernet Ports with TCP/IP protocol.
Data Retrieval: On a pen drive via USB
Built in RTC with rechargeable battery backup
Power supply: 12VDC ± 20%, and provides power for sensors
