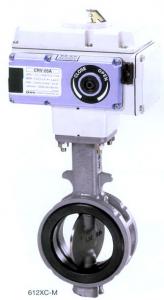

Model: 612X, 615X (Butterfly Valve, universal type )

Small torque but with long life, universal Butterfly Valve conforms to JIS Japanese industry Standard.

Feature:
1. Unique soft contacting structure of sealing seat make it economic and reliable.
2. Excellent performance of endurance and long service.
3. Multiple sealing structure avoids axial leaking.

Materials:
1. Valve Body: FCD450 (C type), FC250 (A.B.E type)
2. Valve Disc: SCS14(40~300mm), CAC701(50~300mm)
3. Valve Seat: EPDM/NBR
4. Valve Axis: SUS420J2

Technic Data:
1. Nominal Bore: 40mm~300mm(612X) 350~1200mm(615X)
2. Max Pressure: 1.0MPa
3. Temperature: 0ºC~120ºC EPDM 0ºC~70ºC NBR
4. Actuator: handle/worm-gear/top worm-gear/cylinder/electromotor
